Category Archives: High School

Items appropriate for use in a high school physics course.

A2L Item 055

Goal: Classify forces and hone the concept of contact force.

Source: UMPERG

A person throws a ball straight up in the air. The ball rises to a
maximum height and falls back down so that the person catches it. What
forces are being exerted on the ball when it is half way to the maximum
height? Ignore air resistance.

  1. The gravitational force only.
  2. The force of the person’s hand only.
  3. Both the gravitational force and the force of the person’s hand.
  4. The gravitational force, the force of the person’s hand, and a third
    force.
  5. None of the above
  6. Cannot be determined

Commentary:

Answer

(1); nothing is in contact with the ball (we ignore forces due to the
air), and so the earth’s gravitational force is the only
“action-at-a-distance” force present.

Background

It is common for students to think that motion requires a force; in some
cases this misconception is more specific, namely, that motion requires
a force in the direction of motion. For this assessment item, the
misconception manifests itself in the belief that there is a “force of
the hand” that propels the ball up during flight.

Questions to Reveal Student Reasoning

Ask students to state what forces are acting on the ball and what object
exerts each force.

How do you know when a force is being exerted by one object on another?

Do the sizes of the forces change? Do the directions of the forces
change? Describe how and why.

Do you have any control over the force of the hand on the ball while the
ball is in the air? Can you make it larger or smaller or change its
direction once you release the ball?

Suggestions

Have students brainstorm situations in which two objects interact
without touching each other. Use as the criteria for an interaction
that an object move or change shape. Have students divide their
situations into two groups: those for which the objects interact
directly, and those for which the objects interact through some other
object (e.g., two blocks “interact” through a spring placed between
them).

Eventually raise the point that in physics the term force refers to
direct interactions only and that most objects interact only when placed
in contact. Demonstrate electric and magnetic forces as examples of
“action-at-a-distance” forces.

A2L Item 054

Goal: Recognize forces and the correct free body diagram.

Source: UMPERG

A car accelerates down a straight highway. Which of the free-body
diagrams shown below best represents this situation?

Commentary:

Answer

(4) is the best response. Students often think of the motor as the source of force propelling the car when it is the friction force on the tires that enable the car to move forward. Sometimes it helps to discuss the process of walking on a perfectly slippery surface (ice) to enable students to see the role of friction for forward motion.

A2L Item 053

Goal: Hone the concept of force.

Source: UMPERG

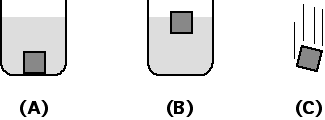

Consider three identical blocks as shown below. In case A the block
sits on the bottom of a beaker filled with oil. In case B the block
floats on water. In case C the block is free-falling.

Which block or blocks experience the smallest gravitational force?

  1. Block A
  2. Block B
  3. Block C
  4. Blocks A and B
  5. Blocks A and C
  6. Blocks B and C
  7. They all experience the same gravitational force
  8. None of the above
  9. Cannot be determined

Commentary:

Answer

(7). The gravitational force is approximately the same for all three
blocks assuming that they are about the same height above the surface of
the earth. The gravitational force on an object near the surface of the
earth depends only on the mass of the object.

Background

Students’ models concerning what factors influence a force can be quite
complex. Introducing students to a force law (conceptually or
mathematically) is usually not enough to correct any false associations.
Only through discussion of the force law in a variety of contexts will
the student develop a model more consistent with the physicists’ model.

Questions to Reveal Student Reasoning

What causes the gravitational force? What are some factors that
influence the gravitational force? Make a list. What is the
gravitational force law? Which of the listed factors are contained in
the force law?

Suggestions

What would be the gravitational force on the block if it were sitting on
a table?

Suppose the block was falling through oil or that you dropped the beaker
in case A. Would the gravitational force change?

A2L Item 052

Goal: Reasoning and comparing the sizes of forces.

Source: UMPERGA block attached to the end of a spring is hanging at rest from the

A block attached to the end of a spring is hanging at rest from the
ceiling as shown at the left below. After the block is pulled down and
released it moves up and down for an extended period of time. The
motion during one cycle is shown in the graph at right below.

Several points are indicated on the graph. At which point is the spring
force exerted on the block the greatest?

  1. Point A
  2. Point B
  3. Point C
  4. Point D
  5. Points B and D
  6. Points A and C
  7. The spring force is always the same
  8. None of the above
  9. Cannot be determined

Commentary:

Answers

(4). The spring force is largest at the position where it is compressed
or stretched the most relative to its natural length. The spring is
already stretched when it is at a height H because there must be an
upward spring force to balance the gravitational force on the block. As
the height of the block is decreased the spring is stretched further.
As the height of the block is increased the spring is stretched less –
if raised enough the spring would start to compress.

Background

Many students will attempt to apply the spring force law without real
understanding. This problem requires students to understand the
physical situation and to interpret graphical information about the
height of the block to reason out an answer.

Questions to Reveal Student Reasoning

What is the force law for a spring? How does the spring force compare
to the weight of the block? At what points is the spring stretched? …
compressed?

Suggestions

Demonstrate with a spring that a vertical spring stretches when a weight
is attached. Show that as the weight moves up and down that the spring
need never get back to its natural length (i.e., it is always stretched)

Draw free-body diagrams, especially for points B and D.

A2L Item 049

Goal: Recognize the presence of a force.

Source: UMPERG

A monkey hangs on a rope. What forces act on the monkey? (Ignore
forces due to the air.)

  1. Friction, Gravitation
  2. Tension, Gravitation
  3. Friction, Tension, Gravitation
  4. Normal, Friction, Gravitation
  5. More than one answer is true
  6. None of the above
  7. Cannot be determined

Commentary:

Answer

(1); Assuming the monkey hangs from a vertical rope
the only forces can be gravity and friction. Students should realize
that there is only one action-at-a-distance force in this case, that of
gravity, and that there must be some contact force(s) to balance that.

A2L Item 050

Goal: Hone the vector nature of force.

Source: UMPERG

A thin wire is stretched horizontally between two walls. If a weight, W,
is hung on the wire, what is true about the tension, T, in the wire?

  1. T < W
  2. T = W
  3. T > W
  4. The relationship between T and W cannot be determined.

Commentary:

Answers

(3); The vertical component of the tension force exerted on the weight
must equal half the gravitational force. For a nearly horizontal wire
this means the tension must exceed the weight.

Background

The intent is to get students to use their intuitive notions of
balancing force to reason how directions of forces change the value of
forces.

Questions to Reveal Student Reasoning

How do you determine the tension force? What direction does the tension
force point? In (A) what does the tension force equal? Does it matter
what angle the strings point? Explain.

Suggestions

Have some students try to lift an object with strings straight up and at
an angle. Which is easier.

Set up a demonstration with spring scales.

A2L Item 047

Goal: Hone the concept of force, recognize the presence of force.

Source: UMPERG

A water balloon is shown at rest in three different situations. In each
case the water balloon is in contact with a system that supports it.

Which system exerts the largest force on the balloon?

  1. Spring support in A
  2. Cardboard and blocks in B
  3. Table in C
  4. None of the systems exert a force
  5. None of the above
  6. Cannot be determined

Commentary:

Answer

(5). Each system exerts the same magnitude force on the balloon. The
size of the force equals the weight of the balloon.

Background

Context for Use: Give to students before they receive a formal
introduction to interactions.

Assessment Issues: (1) What are students’ naive views about
interactions? (2) Can students perceive when an interaction is
occurring? (3) What factors do students attend to when determining
whether a force is present? (4) What factors do students use to compare
the relative magnitude of two forces?

Questions to Reveal Student Reasoning

Which systems exert a force on the balloon? How did you decide whether
the system exerts a force on the balloon? In each case how did the
force affect the balloon? How did the interaction between the balloon
and system affect the system? When comparing two forces, how can you
tell which force is larger?

Suggestions

Recognizing the presence of an interaction is a difficult problem for
students. One must return to the topic repeatedly as additional
understanding and principles are learned by the students. Initially
focus students on the effects of interaction: (1) Do the motions of the
objects change? (2) Do the shapes of the objects change?

A2L Item 046

Goal: Recognize appropriate free body diagram.

Source: UMPERG

A
block of mass 2 kg is at rest on the surface of a wedge that makes an
angle of 30° with the horizontal as shown. The coefficient of
static friction is 0.64 and of kinetic friction is 0.42.

Which figure below best represents the free-body diagram for the block?

6. None of the above
7. Cannot determine the free-body diagram

Commentary:

Answer

(1). The component of the gravitational force parallel to the incline
will balance the frictional force in this situation. The component of
the gravitational force perpendicular to the incline must balance the
normal force.

Background

Even in static situations students can be confused about the relative
sizes of forces.

Questions to Reveal Student Reasoning

What forces are present? What determines how big the gravitational
force is? … the normal force is? … the gravitational force is?

A2L Item 045

Goal: Reason using 2nd law.

Source: UMPERG-ctqpe24

Consider the two situations presented below. T1 is the tension in the string in case A and T2 is the tension in the string in case B.

Which of the following statements is correct?

  1. T1 < T2
  2. T1 = T2
  3. T1 > T2
  4. Cannot be determined

Commentary:

Answer

(2). The force exerted on each block by the attached string must
balance the weight of the block. Since the blocks all weigh the same
amount, the tension in the in the two strings must be equal.

Background

This item does not require formal knowledge of Newton’s Second Law. It
can be used after students can identify the tension and gravitational
force, provided they appreciate that for static situations the forces
exerted on each object must balance. Try asking students to answer the
question individually and without discussion, giving their initial
reaction. Then ask students to re-answer the question after discussing
it briefly in small groups.

Students commonly think that T2 is greater than
T1 because the rope in situation 2 “supports” two masses.
This incorrect intuition can even exist in students who are capable of
drawing correct free-body diagrams and who know that the “tension” force
exerted on each block must balance the weight of the block. The
coexistence of conflicting intuition and formal knowledge is common
among novices.

Questions to Reveal Student Reasoning

What is tension? How do you measure tension?

For situation (A) consider placing a spring scale between the string and
the block in the vertical region. What force is the spring scale
measuring? For situation (A) consider cutting the string in the middle
of the horizontal region and inserting a spring scale. What force is
this spring scale measuring? How would the readings on the two spring
scales compare?

If spring scales were placed similarly in situation (B), how would their
readings compare to the readings on the spring scales in situation (A)?

Suggestions

Consider the original situations and two variations: (a) In (A)
consider a person holding the string in place of the wall; (b) In (B)
consider a person holding the string in place of the block on the left.
In each situation, what force is being exerted on the string so that the
hanging mass at the other end does not move?

Set up the two situations depicted in the item. Insert spring scales at
appropriate points. Discuss the readings on the scales.

A2L Item 043

Goal: Identifying and classifying forces.

Source: UMPERG

Three blocks are stacked as shown below.

How many forces are acting on the bottom block (m3)?

  1. One force
  2. Two forces
  3. Three forces
  4. Four forces
  5. Five forces
  6. Six forces
  7. More than six forces
  8. No forces act on the block
  9. Cannot be determined

Commentary:

Answer

(3); The gravitational force exerted by the earth, the normal force
exerted by the horizontal surface, and the normal force exerted by the
block with mass m2.

Background

Some students have difficulty distinguishing between direct and indirect
interactions. Students may take the view that m1 directly
exerts a force on m3. This view is often verbalized as “the
weight of block m1 is exerted on m3.”

It is helpful to classify forces into action-at-a-distance forces, such
as gravity and electromagnetism, and contact forces. Students can then
employ a strategy for identifying all the forces since every object
touching a body will give rise to a force. The only exceptions are the
fundamental forces, which is an easily exhausted list.

Questions to Reveal Student Reasoning

Does m3 exert a force on m1?

What part of m2 interacts with m3? What part of
m1 interacts with m3?

Is weight a force? If so, what object exerts the force?

Can an object interact with another object without touching it? If so,
when? If not, why not?

Is the normal force exerted by m2 on m3 less than,
equal to, or greater than the weight of m2?

Suggestions

If one pushes on both sides of a bathroom scale the scale reading will
change. What does the scale measure. How is the reading related to the
forces exerted on the scale?

If bathroom scales are placed between the blocks, what forces would each
scale measure (assuming that the scales themselves have very little mass
compared to the mass of the blocks)?
